Amazone C-Mix-Clip

Amazone now has the new C-Mix-Clip quick change system for the Cenius mulch cultivator series to enable an even more comfortable share change. Source: AFDJ eNews

In this way, the simple, very quick and, above all, time saving change over from, for instance, a deep loosening with narrow shares to stubble work with goose foot shares is possible without any problem. So, operating costs can be kept low.

The C-Mix-Clip share system consists, like the C-Mix shares, of a guide plate and a tip.

Also on the C-Mix-Clip system, the guide plate is fixed to the tine and the tip is then fixed on the quick-change system.

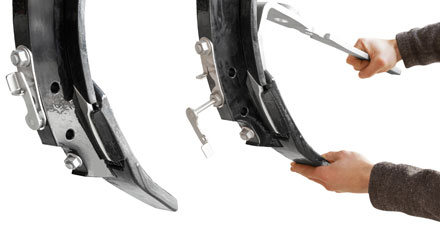

After the initial, simple assembly of the C-Mix-Clip bracket on to the tine, different share tips can be attached with the aid of an easily detachable locking pin according to the relevant operational purpose.

The securing pin is guided at the reverse side of the tine through a hollow bolt and thus holds the relevant share tip safely on the C-Mix-Clip bracket.

Depending on the operating conditions, AMAZONE offers an 80mm wide tine which is especially ideal for the intensive loosening at working depths of 12cm to 30cm and achieving the perfect mixing of organic matter also in deeper soil layers.

In addition, a 100mm wide share tip is available, suitable for 10cm to 20cm working depth and suitable both for the deeper stubble tillage and also for primary soil tillage.

A 320mm wide goose foot share tip which is used for the shallow and overall stubble tillage of 3cm to 10cm is also available.

A special tool is available to firmly push the share onto the C-Mix-Clip bracket. This offers additional comfort during the simple change by a reliable pushing on of the share tips.
