A Case for conceptual learning

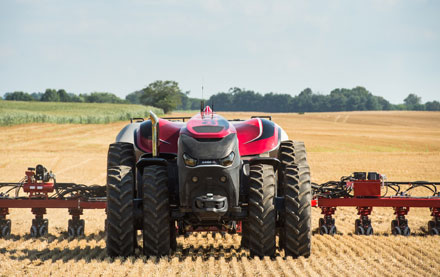

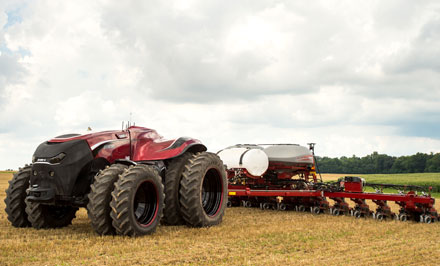

Case IH unveiled an autonomous concept vehicle, a cabless Case IH row crop tractor that can operate autonomously with a wide range of field implements. Source: AFDJ eNews

“In many parts of the world, finding skilled labor during peak use seasons is a constant challenge for our customers,” said Case IH Brand President Andreas Klauser.

“While we offer auto-steering and telematics on our equipment today for remote management of farm machinery and employees, this autonomous tractor concept demonstrates how our customers and their employees could remotely monitor and control machines directly.

“This technology will offer our customers greater operational efficiencies for tasks such as tillage, planting, spraying and harvesting.”

The concept was created to validate the technology and to collect customer feedback regarding their interest and need for future autonomous products for their operations.

Case IH and CNH Industrial’s Innovation Group based the cabless autonomous concept on an existing Case IH Magnum tractor with re-imagined styling.

The vehicle was built for a fully interactive interface to allow for remote monitoring of pre-programmed operations.

The onboard system automatically accounts for implement widths and plots the most efficient paths depending on the terrain, obstructions and other machines in use in the same field.

The remote operator can supervise and adjust pathways via a desktop computer or portable tablet interface.


Through the use of radar, lidar (light imaging, detection, and ranging) and onboard video cameras, the vehicle can sense stationary or moving obstacles in its path and will stop on its own until the operator, notified by audio and visual alerts, assigns a new path.

The vehicle will also stop immediately if GPS signal or position data is lost, or if the manual stop button is pushed. Machine tasks can also be modified in real time with via remote interface or automatic weather warnings.

AFS Global Product Marketing Manager, Rob Zemenchik said the autonomous tractor operation brings together the latest in guidance, telemetry, data sharing, and agronomic management to offer farm managers more control, monitoring capabilities and cost savings.

Multiple autonomous tractors can work as one fleet or simultaneously in multiple sub-fleets assigned to separate fields, each assigned with preprogrammed maps and prescriptions. So you could have one tractor pulling a chisel plow followed closely by another one operating a planter.

Although the autonomous vehicle is presently considered only as a concept tractor, Mr Zemenchik said the technology could function just as well in a standard cabbed tractor where it could use real-time weather and satellite data to optimally apply crop inputs such as nitrogen, herbicides, or fungicides.

“These enhancements really become interesting for our customers when weather comes into play,” said Zemenchik. “Because if it starts to rain in one field, the tractor will automatically stop what it’s doing and head over to another field that is dry to work on that provided it can access that field via private roads.”
