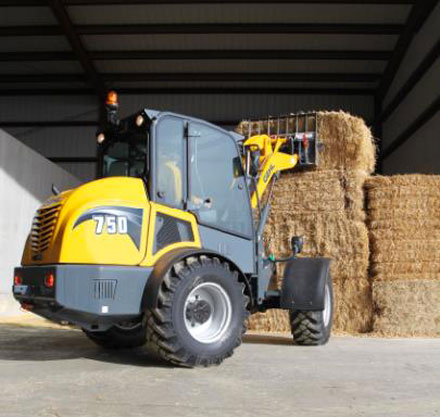

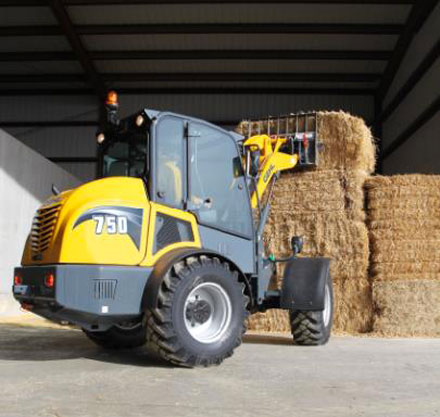

Answering the market demand for larger wheel loaders, Gehl developed the 750 Articulated Loader for the Australian and New Zealand markets. Source: AFDJ eNews
The 750 Articulated Loader represents an expansion into the 60-80 horsepower size class, with a larger engine and higher horsepower than the competition.
This model has Tier IV-certified engine emissions technology, with a Deutz 74.3 hp (55 kW) engine powering. The Deutz uses a diesel oxidation catalyst after treatment system, which allows users to choose their preferred emissions system.
The 750 is an addition to the Gehl family of articulated loaders, weighing in at 4-5 metric tons. It is the largest wheel loader in the Gehl product offering and includes standard convenience features such as a digital instrumentation display, Power-A-Tach Attachment Mounting System and a multi-function joystick.
Digging and scraping performance is maximized through some of the highest breakout forces in their respective classes and front and rear locking differentials.
A heavy-duty, oscillating articulation joint offers 45-degree turning angles to the left and right and 10 degrees of oscillation in both directions for optimal traction and maneuverability.
The bucket and tyres follow a constant turning radius, so the rear tyres of the loader follow the path of the front tyres.
Narrow machine widths allow access to tight, confined spaces that most skid steer loaders with comparable operating capacities cannot access.
The “Z” bar-type linkage allows for mechanical self-levelling action in both the up and down directions, excellent bucket dump angles at the mid- and top-ranges of the lift path, mechanical return to dig, as well as outstanding forward reach.
Proportional auxiliary hydraulics are standard equipment and are utilized with a roller switch on the joystick. Detent and pressure relief are included to optimize attachment hook-up and performance. Two easily accessible auxiliary hydraulic lines with flat-face couplers power a variety of tools and make attachment changes easy.
Additionally, the 750 is available with a three-auxiliary circuit option to the front and rear, including high-flow.
An open canopy ROPS is standard and a complete cab enclosure option is available, providing enhanced comfort and safety for all-day-long operations.
Excellent 360-degree visibility is achieved by positioning the operator above the load for safe operation and excellent view of the attachment.
A multi-function joystick controls the lift arm, bucket, float, travel direction, differential lock and auxiliary hydraulic functions. An inching pedal allows operators to vary ground speed while maintaining a fixed engine speed to optimally run attachments while enabling precise machine speed control.
Optional features include: a Bluetooth “hands free” capable radio, air suspension seat, LED work lights, rotating beacon, high-flow auxiliary hydraulics, rear hydraulic hook-up, rear mount and clevis, HydraglideTM Ride Control, and 3-speed transmission with speeds up 30 kph.
